Engeri Y'okufuula Okuyunga Payipu N'okusiba Okwesigika

Okulwawo kw’okutandika okukola okusinga tekuva ku kudduka payipu butereevu. Ziva mu interfaces-difficult fit-up, okuddaabiriza weld enfunda eziwera, bolt-hole misalignment, hydrotest leaks, n'ebiwandiiko ebikkiriza ebitasimba layini. Okuyungibwa kwa payipu okwesigika n’ebiva mu kusiba bisinziira ku bintu bibiri ebikulu: geometry y’ekiyungo efugibwa n’omugugu gw’okusiba oguddibwamu.

1. Welding connections-kiki ddala ekivuga okutebenkera?

Ekiyungo ekinywevu eky’okuweta kiva mu kukwatagana okubuna okuteekateeka enkomerero, fit-up, okukola welding, n’okukebera. Mu nnimiro, enkyukakyuka ya geometry n’enkyukakyuka y’ebbugumu-okuyingiza bye bifuna okugaziwa.

• Okumaliriza okuteekateeka obutakyukakyuka

Singa omutindo gwa bevel angle, land, oba end-face gwawukana, okuggulawo ebikoola kuwuguka era eddirisa lya weld lifunda. Akabonero akamanyiddwa ennyo ye miwendo gy’okuyita egitakwatagana okubuna layini y’emu.

• Fit-up n'okufuga okukwatagana

Okugguka kw’ebikoola, obutakwatagana munda, n’obunene bw’ebikoola/obukulu bikosa butereevu okuyungibwa kw’ebikoola n’ebivudde mu NDE. Ebisenge ebigonvu-bbugwe, OD entono, n'enkuŋŋaana ennyimpi-ebitundu bisinga okuwulikika.

• Eddirisa ly'okuyingiza ebbugumu-likwatagana n'ebintu n'obuwanvu

Ekitono ennyo kyongera obutaba na bulabe bwa kuyungibwa/kuyingira; waggulu ennyo kyongera okukyusakyusa era kiyinza okukosa embeera ya flange-face.

• Okukebera n’okuddaabiriza okutuuka ku bantu

Singa ebiyungo biba bijjudde okumpi n’ebiwanirizi, ebisenge, vvaalu, oba ebyuma, NDE n’okutuuka ku kuddaabiriza bitera okufuuka omugoba omutuufu ow’akabi ak’enteekateeka.

Bwe kiyungibwa ku welding kisibiddwa ku flankisi, okukyusakyusa okuweta kuyinza okukyusa ensonga okuva ku kizibu ky’omutindo gwa weld-okudda mu kizibu ky’okusiba-okukulukuta okw’ekifo ekiva ku kunyigirizibwa kwa gaasikiti okutali kwa bwenkanya.

2. Socket/fillet welding-lwaki amateeka g’okukuŋŋaanya gakulu okusinga endabika

Ebiyungo eby’omulembe gwa socket- bitera okulabika obulungi mu kulaba, naye okutebenkera kwesigamye nnyo ku nkola y’okukuŋŋaanya eddiŋŋana.

• Obuziba bw’okuyingiza obutakyukakyuka n’ekituli mu bibegabega
• Geometry ya fillet weld eddibwamu naddala mu bifo ebinywevu okutuuka
• Obuwulize obw’amaanyi eri obukoowu wansi w’obugaali n’obuweereza bw’okukankana
• Crevice-obuyonjo bw'ekitundu n'enneeyisa y'okukulukuta byakwatagana n'embeera y'obuweereza

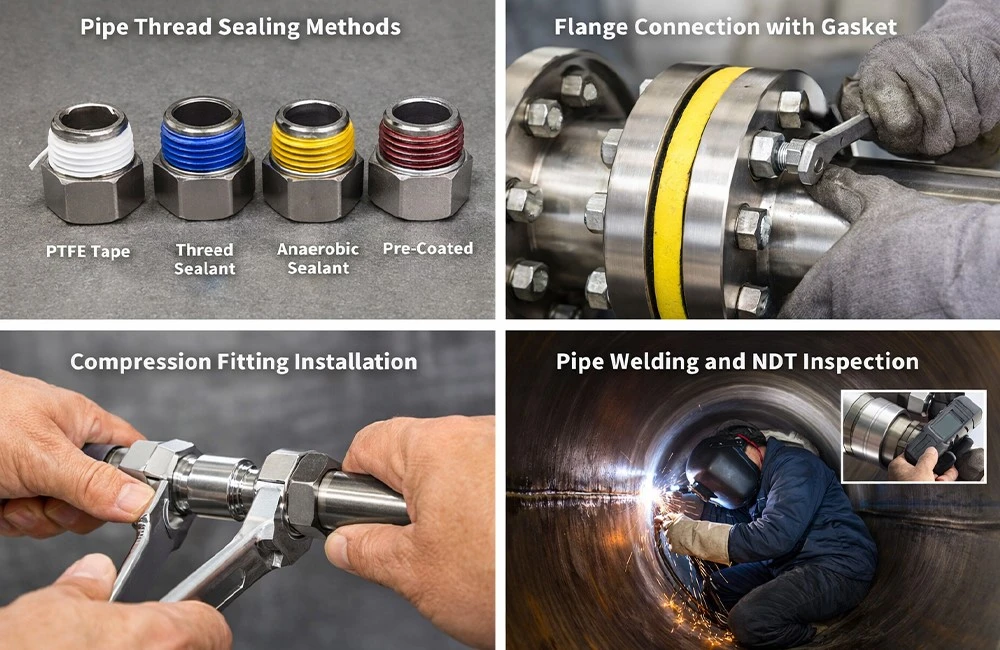

3. Enkolagana eziriko obuwuzi-okwesigamizibwa ye mpisa y'okukuŋŋaanya

Ebiyungo ebiriko obuwuzi binywevu nga omutindo gw’okukuŋŋaanya emabega waabyo.

• Ffoomu y’obuwuzi entuufu n’okukwatagana okumala
• Okufuga okwonooneka ku ngulu w’obuwuzi
• Ekika kya sealant ekikwatagana n’enkola y’okusiiga
• Okunyweza okunnyonnyoddwa n'okuddamu-okukebera enkola
• Enzikiriziganya entangaavu anti-okusumulula wansi w’okukankana n’okutambula kw’ebbugumu

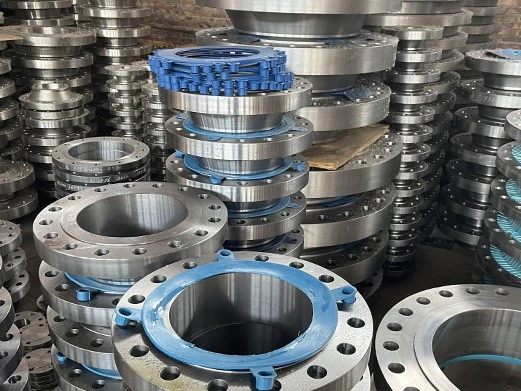

Flange joints zivvuunula omutindo gw’okukuŋŋaanya butereevu mu bivudde mu kusiba. Okusiba okunywevu kwetaagisa ebintu bisatu okufugibwa awamu: embeera ya ffeesi ya flankisi, eddirisa erikola gaasikiti, n’okutikka obuuma obuddibwamu.

1. Embeera ya ffeesi ya Flange

• Flatness/waviness evuga compression uniformity
• Okumaliriza kungulu kikosa okuluma gaasikiti n’okuddamu okukola
• Nicks, dents, ne corrosion bifuuka amakubo agakulukuta
• Okukyusakyusa mu welding kuyinza okuleeta local over/under-compression

Akabonero akamanyiddwa mu nnimiro kwe kukulukuta okukuŋŋaanyiziddwa ku ludda olumu oba okwetooloola obuuma obutonotono, so si kuseeyeeya wadde okwetooloola okwetooloola enzijuvu.

2. Eddirisa erikola gaasikiti

• Wansi-okunyigirizibwa kuleeta okukulukuta amangu
• Okunyigirizibwa okusukkiridde-kubetenta gaasikiti era ne kukendeeza ku kudda engulu, emirundi mingi kweyongera okwonooneka oluvannyuma lw’enzirukanya z’ebbugumu
• Ebbugumu n’emikutu gyanguya creep/relaxation, okukendeeza ku effective gasket stress okumala ekiseera

Okulongoosa gaasikiti yokka kulina omuwendo omutono singa embeera ya ffeesi oba obutakyukakyuka bwa preload kye kiziyiza ekituufu.

3. Bolt preload obutakyukakyuka

• Ensengekera z’okunyweza ez’enjawulo zireeta situleesi ya gaasikiti etali ya bwenkanya
• Okunyweza okusukka-kuyinza okukyusakyusa ffeesi n'okukendeeza ku kunyweza okusiba
• Okusiiga n’enkyukakyuka mu kusikagana bifuula torque-to-preload obutakwatagana
• Enzirukanya y’ebbugumu n’okukankana bikendeeza ku preload, ebiseera ebisinga ekivaako okukulukuta kw’obulamu nga bukyali-

Omutendera 1: Sooka okebere ffeesi ya flange

• Okwonooneka okulabika: okunyiga, okukunya, okunyiga, ebifo ebikulukuta
• Obubonero bw’okukwatagana oba okukyusakyusa obutali bwenkanya naddala oluvannyuma lw’okuweta
• Enkola z’ebifo ebikulukuta ezikwatagana n’ensonga za ffeesi z’omu kitundu

Omutendera 2: Kakasa nti gaasikiti esaanira n’enneeyisa y’okunyigiriza

• Fit to media/ebbugumu/enfuga y’okuyonja
• Imprint etali ya bwenkanya, localized crush, oba okukyukakyuka okutali kwa bulijjo
• "Tighten more naye nga zikyali leaks" patterns eziraga uneven compression oba unstable preload

Omutendera 3: Kakasa nti preload repeatability

• Omutendera gw’okunyweza ogutakyukakyuka n’okunyweza mu mitendera
• Embeera y’okusiiga n’okusikagana okutambula obutakyukakyuka
• Okumanya obulabe bw’okufiirwa nga tebannaba kutikka wansi w’okutambula kw’ebbugumu n’okukankana

• End prep tekwatagana na nkola ya welding → geometry drift → okuddaabiriza kweyongera
• Fit-up/alignment tefugibwa → obutakwatagana munda n'ekikolo ekitali kinywevu → NDE ​​okulemererwa
• Spool tolerance stack-up → bolt-obutakwatagana bulungi mu kinnya → okukaka okunyigirizibwa okuteekebwa
• Okukyusakyusa okuweta kukosa ffeesi za flange → okunyigirizibwa kwa gaasikiti okutali kwa bwenkanya → okukulukuta kw’amazzi mu kitundu
• Enkola y’okunyweza ekyukakyuka okusinziira ku bakozi → okusaasaana nga tebannaba kutikka → okukulukuta kw’obulamu nga bukyali-

Enkola y’olujegere eya bulijjo kwe kuwalirizibwa okukwatagana okufuula ebituli okusimba layini → okunyigirizibwa kwa gaasikiti okutali kwa bwenkanya → okukulukuta mu kiseera ky’okugezesa → okunywezebwa okusingawo → okukyusakyusa ffeesi → okukulukuta okuddirira.

Okusobola okuyunga payipu n’okukkiriza okusiba, abeekenneenya batera okunoonya ebintu ebiyinza okulondoolebwa, ebipima, era ebikakasibwa:

• Okulondoola: ebbugumu/batch identification ne satifikeeti
• Interface-critical geometry: embeera y'enkomerero, okulaganya, flange-embeera ya ffeesi, bolt-okulaganya ekinnya
• Ebiwandiiko ebyetaagisa eby’okukebera n’okugezesa buli pulojekiti
• Documentation pack ekoleddwa ku maapu obutakyukakyuka ku lukalala lw'enkolagana

Mu kutuusa pulojekiti ya Octal Pipe, ebitundu n’ebiwandiiko bitera okusengekebwa okusinziira ku lukalala lw’enkolagana emu kale ensonga z’okuyunga, enkola y’okusiba, n’ebiwandiiko by’okukkiriza bisigala nga bikwatagana era nga byangu okubala.
